Waste Oil Drainers
Mobile and fixed waste oil collection systems from RAASM. Gravity drainers, pump-equipped units and drum trolleys.
RAASM waste oil drainers provide clean, efficient collection of used engine oil, transmission fluid, hydraulic oil and other waste fluids. Available as mobile units on wheels for workshop use or fixed installations for pit-mounted systems.
The range includes gravity drainers with adjustable funnels, pump-equipped drainers for faster evacuation, drum trolleys for 60–200kg containers, and complete waste oil management systems. All units feature oil-resistant construction, drip-free operation and easy connection to waste oil tanks.

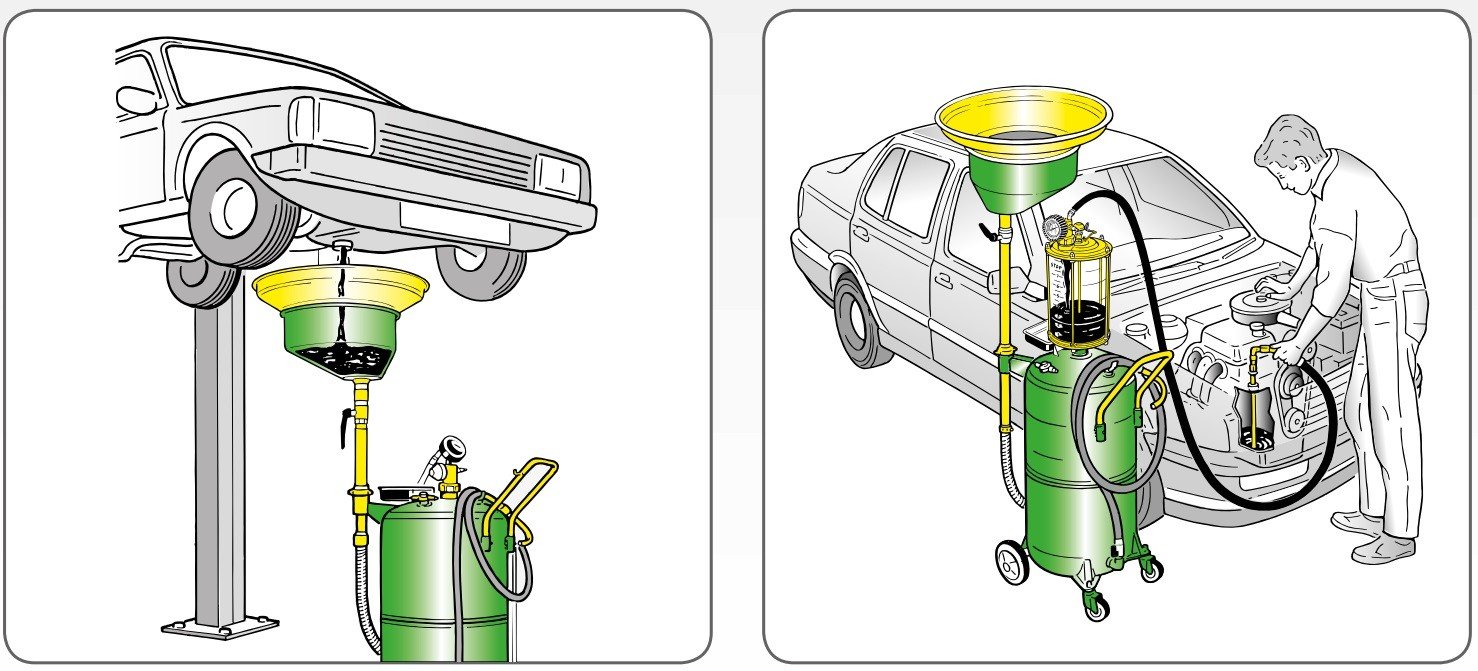

Waste oil drainer 115l
Oil drainer with wheel-mounted tank: practical and functional, suitable for gravity draining of engine, gearbox and differential oil from all motor vehicles placed on auto lift or pit. The centrally mounted 15litre capacity bowl, in addition to being height-adjustable, can be optimally positioned thanks to the swivel joint on which it is applied.

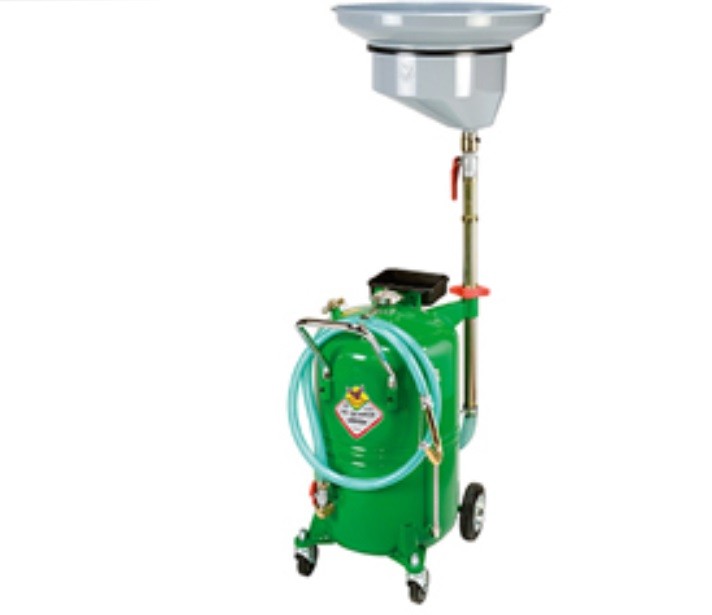

Waste oil drainers with side bowl and 115-litre wheel- mounted tank.
Waste oil drainer with wheel-mounted tank: practical and functional, suitable for gravity draining of engine, gearbox and differential oil from all motor vehicles placed on auto lift or pit. The 15-litre capacity bowl is side-mounted, enabling use even in difficult situations. It is also height adjustable and equipped with swivel joint enabling optimum positioning.

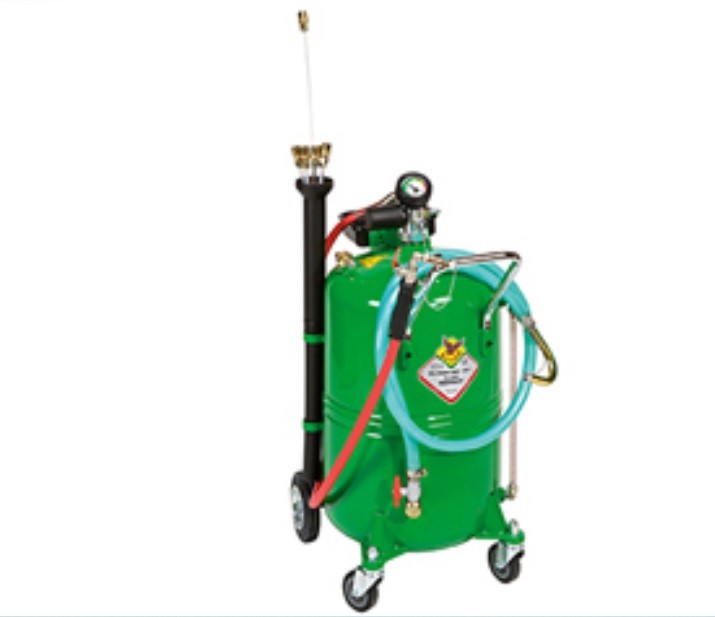

Air-operated oil drainer, with wheel-mounted 115-litre tank
The air-operated drainers are ideal for quick engine oil change (by means of suction with the probe) of any motor vehicle: auto, truck, tractors, small aircraft, boats, etc. Once depressurized, they work autonomously anywhere because they do not require continuous connection to the compressed-air system. The oil must be hot (70/80°C).

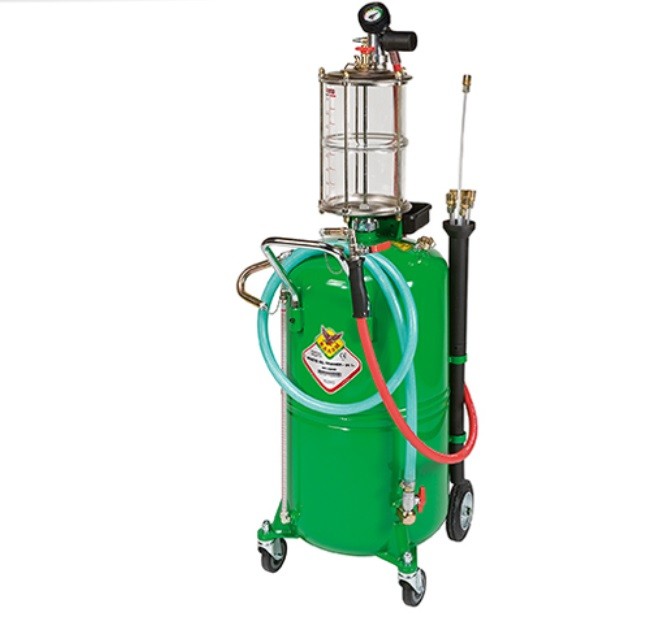

Gravity and suction drainer, 115 litres with suction probe kit and pantograph recovery bowl for cars
The air-operated drainers are ideal for quick engine oil change (by means of suction) of any motor vehicle. The transparent chamber allows the quantity and quality of sucked oil to be checked immediately. Once depressurized, they work autonomously anywhere because they do not require continuous connection to the compressed-air system. The oil must be hot (70/80°C).

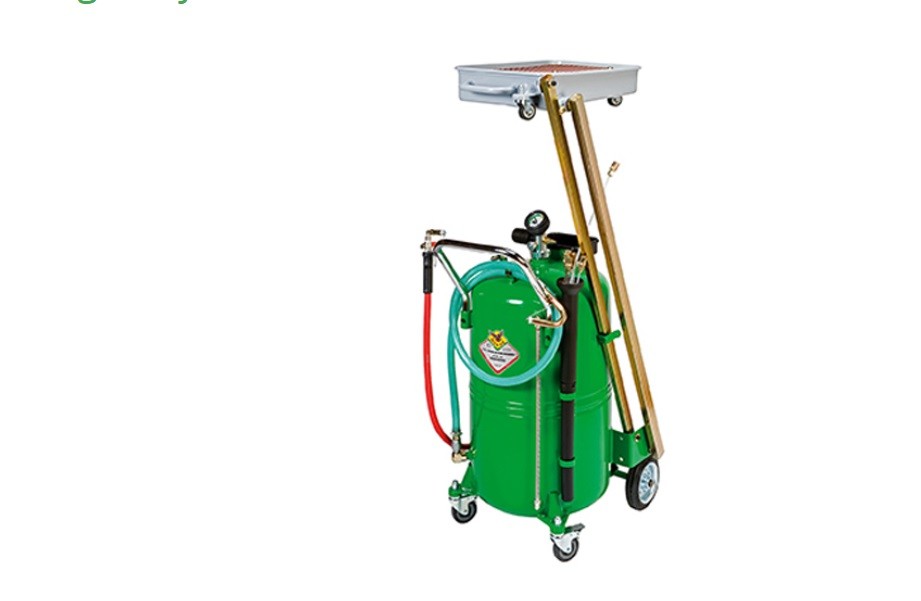

Gravity drainer, 115 litres with pantograph recovery bowl for cars
Due to their versatility, these pantograph oil suction/drainers are universal drainers because they can be used to change the oil of all motor vehicles and motorcycles: - by gravity with tank on floor - by gravity with tank raised, with motor vehicles placed on auto lift or pit. - by suction with probe inserted directly in the engine, and anywhere because they do not require continuous connection to the compressed-air line or to other energy sources. (The oil must be hot 70/80° C).
Frequently Asked Questions
What capacity waste oil drainer do I need?
For passenger car workshops, a 65–80 litre mobile drainer is standard. For commercial vehicle and truck workshops, choose 100 litres or larger. Fixed pit-mounted drainers with pump evacuation to a central tank are best for high-volume operations.
Can waste oil drainers handle other fluids?
Yes. RAASM drainers handle engine oil, transmission fluid, hydraulic oil, coolant and other workshop fluids. For highly corrosive fluids or solvents, check the material compatibility — standard drainers use polyethylene and steel construction.
